SB-090 Material Specifications   SB-090 Cylindrical Bushings Metric Size   SB-090 Flanged Bushings Metric Size

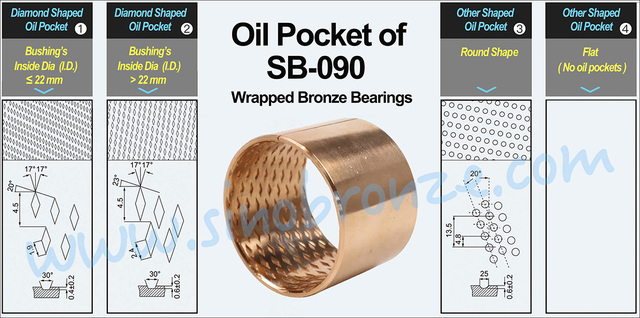

SB-090 | CuSn8 wrapped bronze bush, diamond oil pockets, ISO3547 standard   SB-090 series bearings are wrapped from a cold formed homogenous bronze CuSn8 (alternative CuPb10Sn10) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.   Bronze alloy   Chemical Composition (%)   Type    CuSn8P    Cu=91.3%  Sn=8.5%  P=0.2%  Pb=0%  Zn=0%    Lead Free    CuPb10Sn10    Cu=Balance. Sn= 9~11%, Pb=9~11%    With Lead    * Available bronze alloys used in this part:  BS 2874 PB104 / BS EN 12163 CW453K / NFL 14703 / ISO 427 DTD 265A / QQ B 750 D / SAE J 461 CA521 / ASTM B 139 C52100 / ASTM B 103 C52100 / SAE J463 / DIN 17672 2.1030 / JIS H 3741 / SIS 14 54 31  Features Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics, the transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling. Also performs well with lubrication. Typical Applications     This type of bushing is widely applied in Agricultural machine, construction machine, crane, underpan parts, conveyor, elevator, winch, planing machine... It can be fabricated into bushes, half bearings, flanged bushes, trust washers, spherical bearing and so on... Technical Data of SB-090 / SB-09G / SB-T90 / SB-T90S Wrapped Bronze Bushing  Max.Loading  Static  120 N/mm²  Dynamic load  40 N/mm²  Max.PV limit  Grease lubrication  2.8 N/mm²·m/s  Max.Speed  2.5 m/s  Match the axis  Hardness  ≥ 50HRC  Roughness  Ra= 0.4 ~ 1.0  Friction Coefficient 　  0.05 ~ 0.25  Tensile strength 　  470 N/mm²  Yield Strength 　  280 N/mm²  Hardness 　  100~120 HB  Density 　  8.8 g/cm³  Temperature Range 　  -100℃ ~ +200℃  Thermal conductivity 　  58 W(m·k)﹣¹  Coefficient of thermal expansion 　  18.5×10-6·K﹣¹  * Initial pre-lubrication at assembly is required. Diamond-Shaped Oil Procket Specifications for  SB-090 Wrapped Bronze Bushing Standard tolerance for SB-090 / SB-09G / SB-T90 / SB-T90S Wrapped Bronze Bushing (As per to DIN 1494/ ISO3547) Standard Dia. O.D. Size Housing Bore (H7) I.D.Size after mounting (H9) Matching Shaft Diameter (f7 to f8) 10~18 0.065 0.018 0.046 -0.016 0.03 0 0 -0.043 18~30 0.075 0.021 0.052 -0.02 0.035 0 0 -0.02 30~50 0.085 0.025 0.062 -0.025 0.045 0 0 -0.064 50~80 0.1 0.03 0.074 -0.03 0.055 0 0 -0.076 80~120 0.12 0.035 0.087 -0.036 0.07 0 0 -0.09 120~180 0.17 0.4 0.1 -0.043 0.1 0 0 -0.106 180~250 0.21 0.046 0.115 -0.05 0.13 0 0 -0.122 250~315 0.26 0.052 0.13 -0.056 0.17 0 0 -0.137 Other Wrapped Bronze Bushings SB-09G SB-T90 SB-T90S Heavy Duty Series (Customized on Request)

Gallery of Wrapped Bronze Bearings / Bushings / Thrust Washers

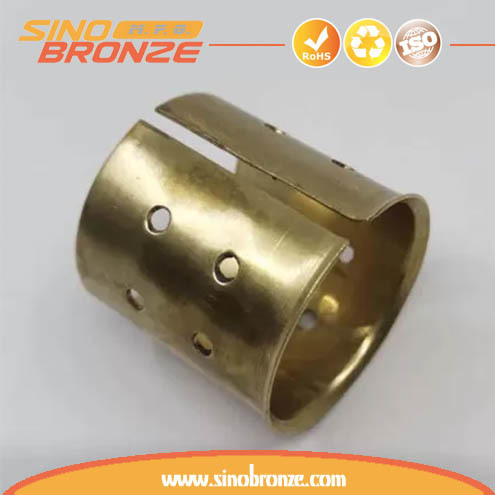

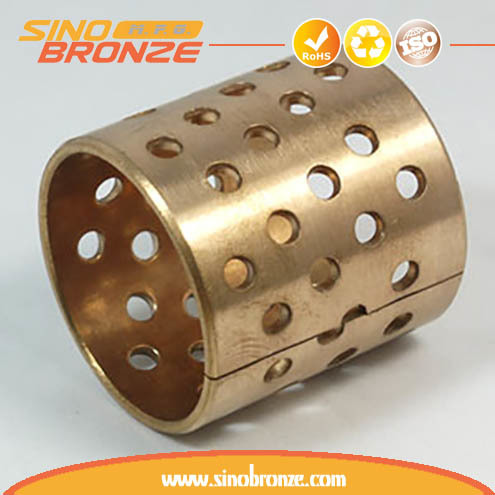

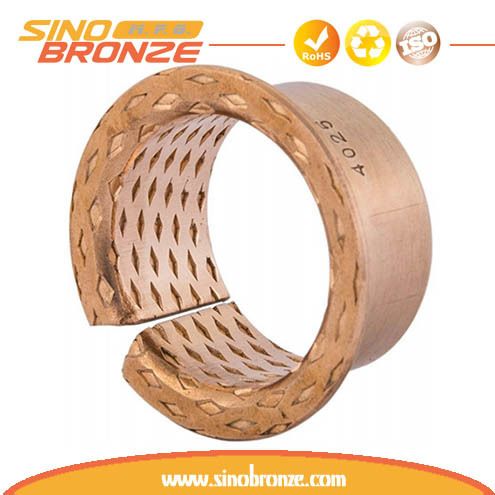

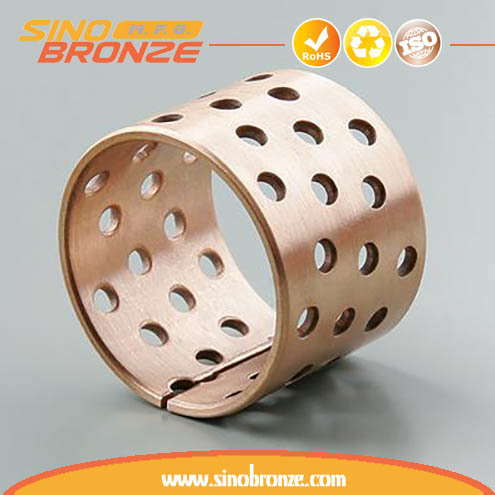

Wrapped bronze bushing CuSn8, ​25x28x35 mm	Bronze bushing filled with graphites CuSn8, 30x34x25 mm	Wrapped bronze bushing CuSn8, ​28x31x20 mm	Bronze Bearings made of CuSn8 with Lubrication Indents (MBZ-B09 Bushing)

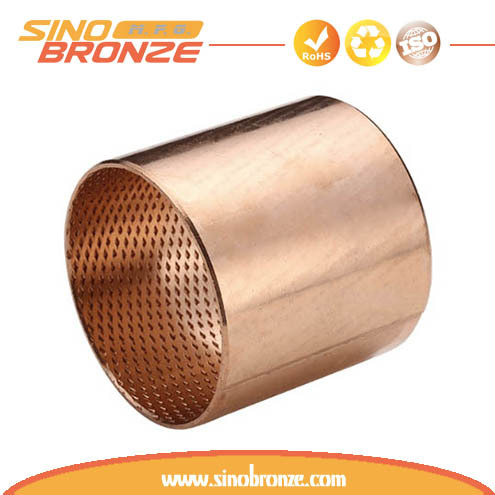

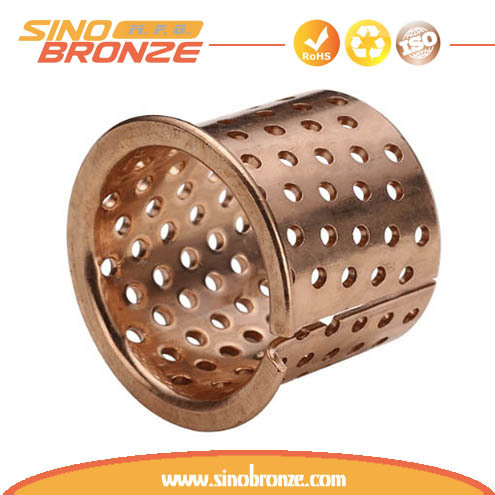

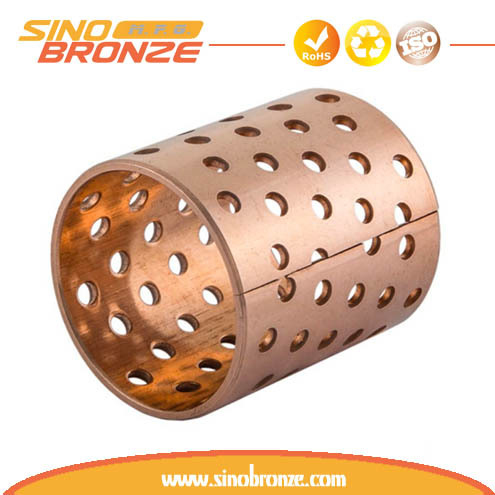

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

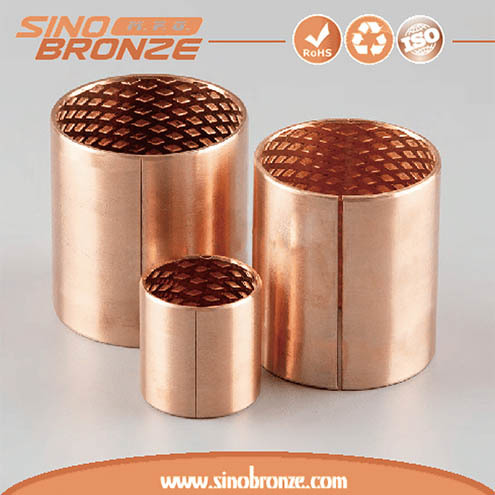

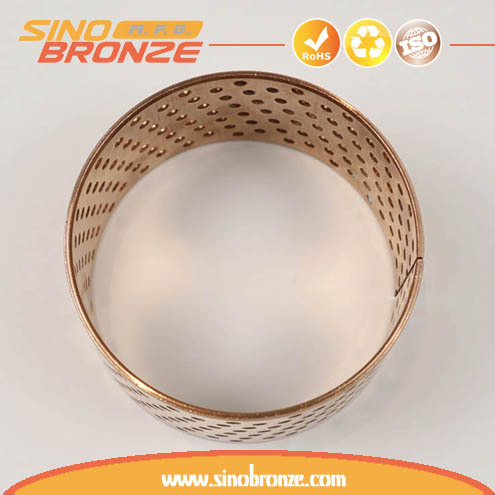

Pressed Bronze Bearings CuSn8 with Lubrication Indents	Stamped Bronze Bearings CuSn8 with Oil Through Hole	Wrapped Bronze Bearings CuSn8 with Oil Through Hole	Wrapped Bronze Bearings CuSn8 with Lubrication Indents

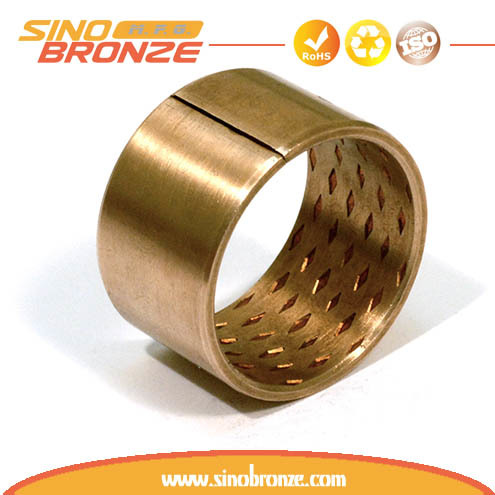

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents and Solid Lubricant Graphite

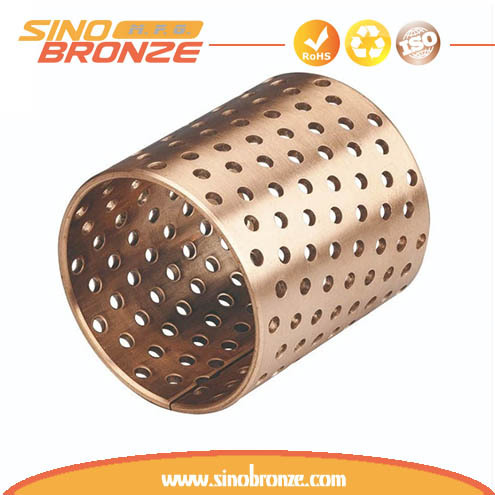

Bronze Bearings Made of CuSn8 Filled with Solid Lubricant Graphite	Bronze Bearings Made of CuSn10Pb10 Filled with Solid Lubricant Graphite	Bronze Bearings Made of CuSn8P Filled with Solid Lubricant Graphite	Bronze Bearings Made of CuSn6.5P Filled with Solid Lubricant Graphite
