OILES 500 SP metric flanged bushings (SPFG), brass 500SP1 with graphite

Material Specs
Flanged Bushing
with Lubricant Plugs


  OILES 500 SPFG metric oilless bushings with lubricant plugs

Oiles 500 SPFG bearings incorporate high quality copper alloy based metals with engineered solid lubricant plugs. These bearings are designed to accommodate a wide variety of application requirements demanded by today's equipment.
Precise tolerances utilizing strategic plug location and plug compounds ensure performance delivery and lubrication free service. This bearing style is available in standard inch, metric and made to order sizes. 500 series bearings provide extreme temperature limits and high load capacity performance. Available in journal style bearings and flat wear plate.

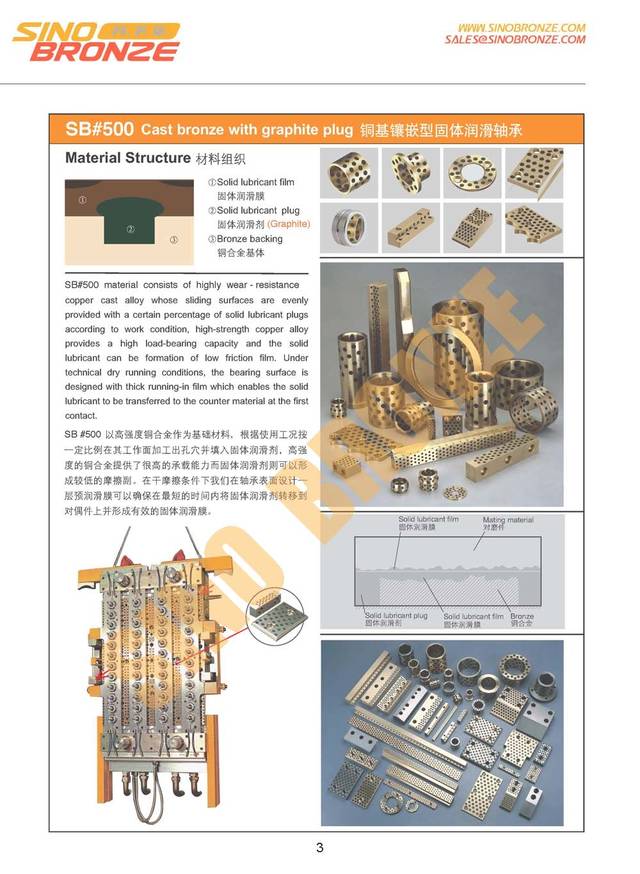

①  Solid lubricant film
②  Solid lubricant plug
③  Bronze backing

Material Features
  • Allows maintenance-free and long-life operation;
  • Suitable for high static and dynamic loads;
  • With low and smoothly coefficient of friction and without stick-slip effects;
  • Suitable for dirty, corrosion, impact load and edge loading;
  • The base material provided a good shock-absorbing capacity;
  • Can be used over a large temperature range;
  • Suitable for reciprocating, rotating and oscillating movement with start frequency
    and difficulty to form oil film occasions;
  • With low wear rate and long life service.

How It Works ?

When the mutual friction occurs between two non-lubricated surfaces, the two contacts with the uneven surface of the peak by the shear, stick-slip
and plastic deformation giving rise to friction and wear. Conventional lubricants can significantly reduce these effects, however, the conventional
lubricant will be more and more squeezed out of the contact area with increasing surface which formed the dry friction or boundary lubrication.

With SB#500 (OILES #500) bearings, the lubrication is effected by the sliding material itself, The solid lubricant is released from the friction
material by micro-movement. This gives the sliding partners smooth surfaces with a firmly adhesive solid lubricant film, the solid lubricant film remains within the contact area even under heavy loads. The embedded solid lubricant plugs can be continuously provided to the friction surface to reduce friction resistance and wear, thus make the bearing can be worked under low wear rate and long-life service.

Typical Applications

The product is widely used in continuous casting rolling machine, mining machinery, shipping machinery, turbine, injection machinery, auto mould
and so on.

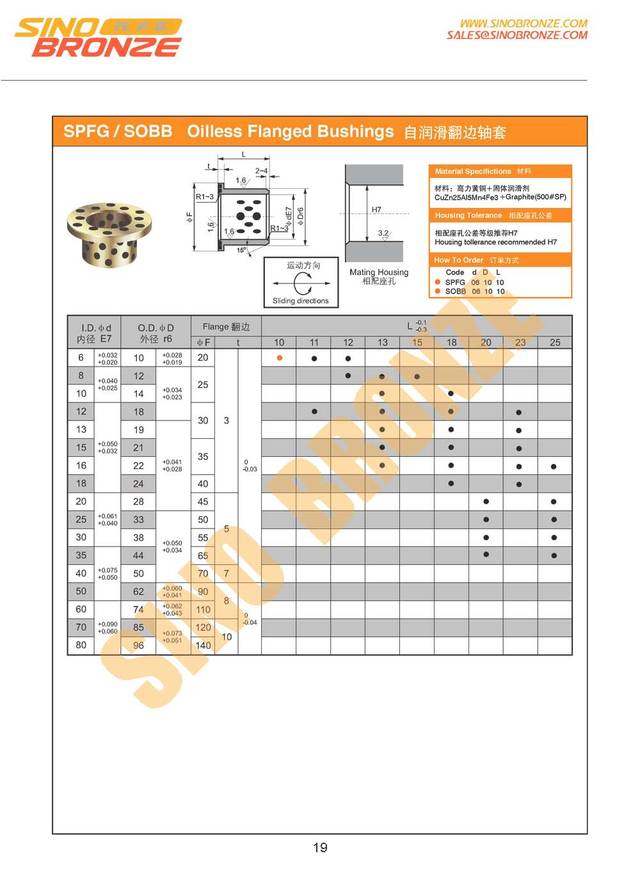

  OILES 500 SPFG metric oilless bushings with lubricant plugs  --- Metric Size

Pictures of SPFG bushings
SPFG-253325 | 25x33x50/5x25 mm   SPFG-303825 | 30x38x55/5x25 mm   SPFG-253325   SPFG-303825




















SPFG-0610  SPFG-0612  SPFG-0810   SPFG-0812   SPFG-0815   SPFG-1010   SPFG-1012   SPFG-1015   SPFG-1017   SPFG-1210   SPFG-1212   SPFG-1215   SPFG-1220   SPFG-1225   SPFG-1230   SPFG-1310   SPFG-1312   SPFG-1315   SPFG-1320   SPFG-1325   SPFG-1330   SPFG-1415   SPFG-1420   SPFG-1425   SPFG-1510   SPFG-1512  SPFG-1515   SPFG-1520   SPFG-1525   SPFG-1530   SPFG-1612   SPFG-1615   SPFG-1618   SPFG-1620   SPFG-1623   SPFG-1625   SPFG-1630   SPFG-1635   SPFG-1640  SPFG-1815   SPFG-1820   SPFG-1825   SPFG-1830   SPFG-1835   SPFG-1840   SPFG-2015   SPFG-2020   SPFG-2025   SPFG-2030   SPFG-2035   SPFG-2040   SPFG-2515  SPFG-2520   SPFG-2525   SPFG-2530   SPFG-2535   SPFG-2540   SPFG-2550   SPFG-3020   SPFG-3025   SPFG-3030   SPFG-3035   SPFG-3040   SPFG-3050   SPFG-31.520  SPFG-31.530  SPFG-31.535  SPFG-31.540  SPFG-3520   SPFG-3525   SPFG-3530   SPFG-3535   SPFG-3540   SPFG-3550   SPFG-4020   SPFG-4025   SPFG-4030   SPFG-4035  SPFG-4040   SPFG-4050   SPFG-4525   SPFG-4530   SPFG-4535   SPFG-4540   SPFG-4550   SPFG-5030   SPFG-5035   SPFG-5040   SPFG-5050   SPFG-5060   SPFG-5540  SPFG-5560   SPFG-6040   SPFG-6050   SPFG-6060   SPFG-6080   SPFG-6368   SPFG-6560   SPFG-7050   SPFG-7080   SPFG-7560   SPFG-8060   SPFG-8080   SPFG-80100  SPFG-9060   SPFG-9080   SPFG-10080   SPFG-100100   SPFG-12080   SPFG-120100   SPFG-13080   SPFG-130100   SPFG-14080   SPFG-140100   SPFG-150100  SPFG-150120   SPFG-160100   SPFG-160120
