| • SINOBRONZE with C93700 High Leaded Tin Bronze |
C93700 is the high-leaded tin bronze alloy of lead content between 7 percent and 30 percent. It is free cutting and retain favorable thermal conductivity and good lubricity due to the lead content. C93700 is ideal for BEARING applications where there could be a loss of the lubrication boundary. It performs excellent in unforgiving environments where foreign matter may be present, such as dirt and other foreign materials.
SINO BRONZE CO., LTD. uses for producing bearing plates, bearings, bushings, bushings for high speed and heavy pressure, corrosion-resistant castings, crank shafts, high speed/heavy load bearings, impellers, machine parts, parts for steel mill maintenance, pressure-tight castings, pumps, slide guides for steel mills and large bearings for ships...
|
| • Chemical Composition C93700 High Leaded Tin Bronze |
|
Cu
|
Sn
|
Pb
|
Zn
|
Fe
|
Ni
|
Sb
|
P
|
S
|
Al
|
Mn
|
Si
|
|
79.00-82.00
|
9.00-11.00
|
8.00-11.00
|
0.8
|
0.7
|
0.5
|
0.5
|
1.5
|
0.08
|
0.005
|
N/A
|
0.005
|
|
| • Mechanical Properties C93700 High Leaded Tin Bronze |
|
Tensile Strength
(min)
|
Yield Strength
(at .5% extention under load min)
|
Elongation
(in 2in. or 50mm min, %)
|
Brinell Hardness
(min)
|
Remarks
|
|
Ksi
|
MPa
|
Ksi
|
MPa
|
- |
- |
- |
|
35
|
241
|
20
|
138
|
6
|
55
|
- |
|
| • Typical Applications C93700 High Leaded Tin Bronze |
| |
|
|
|
|
|
|
| • Bearing plates |
|
• Sliding Bearings |
|
• Sliding bushings |
|
• Bushings for high speed and heavy pressure |
| • Corrosion-resistant castings |
|
• Crank shafts |
|
• Impellers |
|
• High speed or heavy load bearings |
| • Machine parts |
|
• Pressure-tight castings |
|
• Pumps |
|
• Parts for steel mill maintenance |
| • Slide guides |
|
• Large bearings for ships |
|
|
|
|
|
|
 |
|
 |
|
 |
|
|

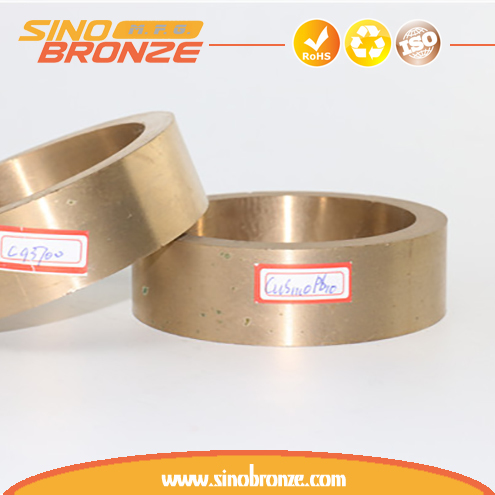

C93700
Bronze Bearing |
|

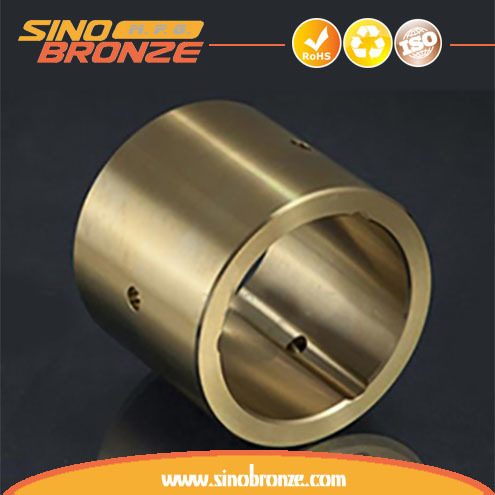

CuPb10Sn
Bronze Bushing |
|
CuSn10Pb10
Bronze Bushing |
|
CC495K
Bronze Bearing |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
LB2
Bronze Bearing |
|
G-SnPbBz10
Bronze Bearing |
|
G-CuPb10Sn
Bronze Bearing |
|
|
|
