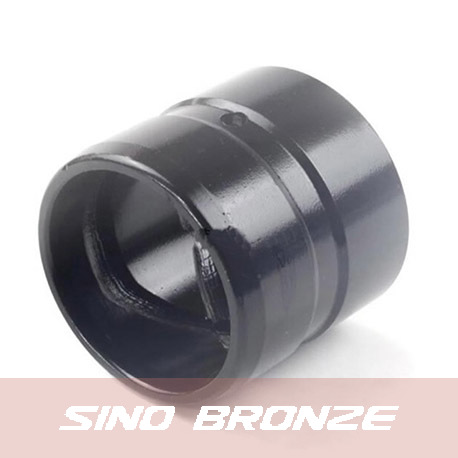

Bucket Bushings with ring grooves and oil holes, hardened steel with surface blackening

HSB series
Hardened Steel Bushings (Metric Size)




Bucket Bushings with ring grooves and oil holes,
AISI 1045 / SAE 1045 / C45 / S45C hardened steel with surface blackening
SinoBronze hardened steel bushings are backed with steel, and it`s inner surface has many spiral oil grooves, oil rings, oil holes, round and elliptical oil sockets. After quenched and tempered, the surface roughness and wear-resistant has been improved.
This type of product is used in engineering machinery field and applications that demand high wear resistance without cracking under heavy load.
Material Features
•  SinoBronze hardened steel bearings deliver greater wear resistance while the interior
    remains ductile and resistant to cracking;
•  Appropriate for heavy equipment, hydraulic cushioning and rotational applications;
•  Special alloy contains manganese and vanadium for improved strength and toughness,
    increased hardening rate and higher wear resistance.

Chemical Composition (%) of Steel SAE-1045 / C45 / S45C

C Si Mn Ni S P Cr Cu As
0.42 - 0.5 0.17 - 0.37 0.5 - 0.8 max   0.3 max   0.04 max   0.035 max   0.25 max   0.3 max   0.08

Cross Reference for SAE-1045 / C45 / S45C Steel

EU USA Germany Japan France England Italy Spain China Sweden Finland Russia Inter
EN - DIN,WNr JIS AFNOR BS UNI UNE GB SS SFS GOST ISO
C45E (1.1191) 1045 CK45 S45C XC45 080M46 C45 C45k 45 1672 C45 45 C45E4
XC48H1 CFS8 F1140 45H

Typical Applications

The product is widely used in the following fields：
• Earth movement machinery (excavators, loaders, etc…)
• Drilling machinery
• Farming machinery (power harrows, ploughs, rear excavators, etc..)
• Equipment (grabs, buckets, grippers etc)
• Hydraulic cylinders (protection against wear of bottoms and eyelets)
• Consumables in industrial washing machines.
• Sliding guides for industrial presses.
• Components for suction pumps (sliding seats for Corteco and/or sealing rings).
• Components for machine tools and/or automatic machines
• Pumps and industrial presses


Basic Dimensions of Bushings in Metric Sizes

 * Note - Bearing forms made to order: bearings with various lubrication grooves, non-standard parts.

Oil groove types of Sinobronze Bushings

SinoBronze Standard Packaging of  Hardened Steel Bushings
