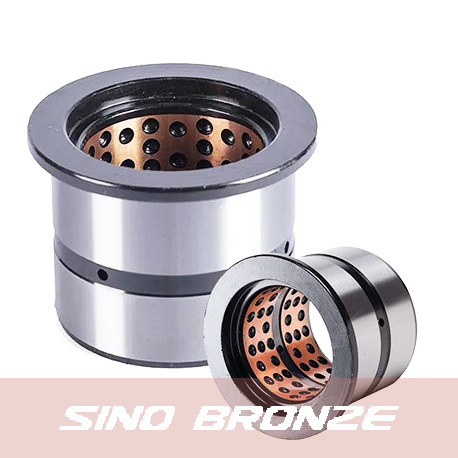

Flanged hardened steel bushes, with oil grooves, oil ring and oil pockets, E470 (EN10297) steel

HSB series
Hardened Steel Bushings (
Metric Size)




Flanged hardened steel bushes, with oil grooves,
oil ring and oil pockets, E470 (EN10297) steel


SinoBronze hardened steel bushings are backed with steel, and it`s inner surface has many spiral oil grooves, oil rings, oil holes, round and elliptical oil sockets. After quenched and tempered, the surface roughness and wear-resistant has been improved.

This type of product is used in engineering machinery field and applications that demand high wear resistance without cracking under heavy load.


Material Features
•  SinoBronze hardened steel bearings deliver greater wear resistance while the interior
    remains ductile and resistant to cracking;
•  Appropriate for heavy equipment, hydraulic cushioning and rotational applications;
•  Special alloy contains manganese and vanadium for improved strength and toughness,
    increased hardening rate and higher wear resistance.


Chemical Composition (%) of E470 (EN10297) Steel

Grades C Si Mn P S V Al N Nb
20MnV6 0.17-0.24 0.17-0.37 1.30-1.60 0.025 max 0.025 max 0.07-0.12 0.10 min 0.020 max 0.07 max
E470 0.18-0.22 0.10-0.50 1.30-1.70 0.03 max 0.015-0.030 0.08-0.15 0.10 min 0.020 max 0.07 max
Grade 600 0.22 max 0.50 max 1.60 max 0.05 max 0.05 max 0.08-0.12 0.02 min / /

Cross Reference of E470 / 20MnV6 / Grade 600 Steel

Steel Standard Steel Name Steel Number
EN 10294-1/ EN 10297 20MnV6 / E470 1.0536

Typical Applications

The product is widely used in the following fields:
 Earth movement machinery (excavators, loaders, etc…)
 Drilling machinery
 Farming machinery (power harrows, ploughs, rear excavators, etc..)
 Equipment (grabs, buckets, grippers etc)
 Hydraulic cylinders (protection against wear of bottoms and eyelets)
 Consumables in industrial washing machines.
 Sliding guides for industrial presses.
 Components for suction pumps (sliding seats for Corteco and/or sealing rings).
 Components for machine tools and/or automatic machines
 Pumps and industrial presses


Basic Dimensions of Bushings in Metric Sizes

 * Note - Bearing forms made to order: bearings with various lubrication grooves, non-standard parts.


Oil groove types of Sinobronze Bushings


SinoBronze Standard Packaging of  Hardened Steel Bushings


Customized Bucket Bush, Cushion Bushings, Cylinder Bushing, Spacers and Washers

Hardened Steel Bush and Iron Bucket Boom Arm Pin Bushing
Hardend Steel Busings
Cushion Bushings
Bucket Bushings
Bucket Pivot Bushings
Locking Ring
