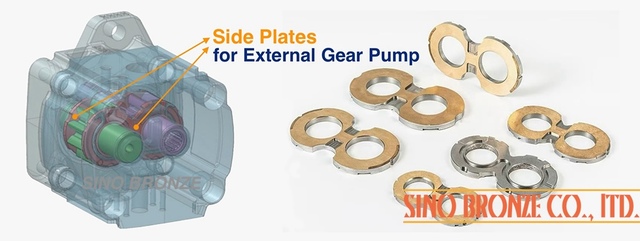

SinoBronze ® Side Discs and Side Plates for External Gear Pump
Bimetal side plates are a type of bearing that is commonly used in hydraulic gear pumps. These plates are constructed from two types of metal – typically a high-quality low carbon steel and a bronze alloy – through a process of high-temperature sintering and rolling. These bimetal plates are designed to withstand high impact loads, making them suitable for use in hydraulic gear pumps which are often subject to intense forces. The plates’ combination of steel and bronze creates a bearing that is both strong and has excellent anti-friction properties.
Commonly Used Bimetal Alloys in SinoBronze ® Side Plates
Metallographies
SB Material Code		SB-792	SB-799	SB-820	SB-830	SB-840	SB-783
SAE Code / DIN Code		SAE-792	SAE-799	GLYCO66	BS PB1	CuSn6 (2.1020)	SAE-783
ISO Code		CuPb10Sn10	CuPb24Sn4	CuSn8	CuSn10	CuSn6.5P	AlSn20Cu
Backing Material		Low Carbon Steel ST-12 / SAE1010
Chemicals (%)	Cu	Balance	Balance	Balance	Balance	Balance	0.7~1.3
	Pb	9.0~11.0	21.0~27.0	2.0~4.0	0.1	0.1	-
	Sn	9.0~11.0	3.0~4.5	5.0~7.0	9.0~10.0	6.0~6.8	17.5~22.5
	Zn	0.5	0.5	5.0~7.0	0.3	0.3	-
	P	0.1	0.1	0.1	0.1	0.1~0.3	-
	Fe	0.5	0.7	0.6	0.5	0.6	0.7
	Ni	0.5	0.3	0.3	0.5	0.5	0.1
	Al	-	-	-	-	-	Balance
	Other	0.5	0.5	0.5	0.5	0.5	0.5
Performance Data	Sliding	★★★★★	★★★★★	★★★★	★★★★★	★★★★	★★★★
	Abrasion Resistance	★★★★★	★★★	★★★★	★★★★	★★★★	★★★★
	Hardness	★★★★★	★★	★★★★	★★★	★★★★	★★
	Anti-bite Shaft	★★★★	★★★★★	★★★	★★★★	★★★	★★★★
	Corrosion-resistant	★★★★★	★★	★★★★	★★★★	★★★★	★★★
	High loading	★★★★★	★★	★★★★	★★★★	★★★★	★★★
	Anti-fatigue	★★★★★	★★★	★★★★	★★★★	★★★★	★★★
	Environmental protection	x	x	x	★★	★★	★
Other Metals Used in SinoBronze ® Side Plates

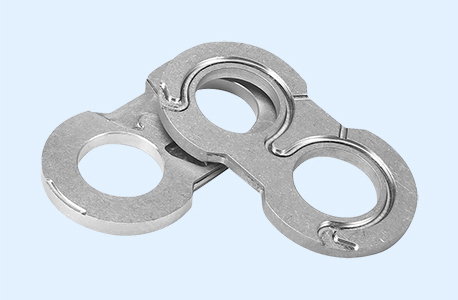

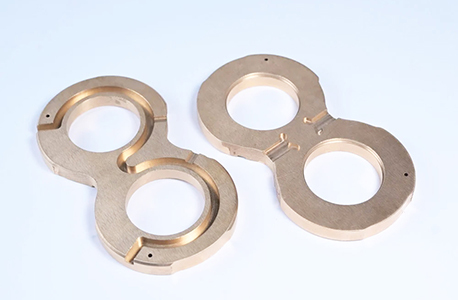

Side Plates - Bronze   Side Plates - Aluminium

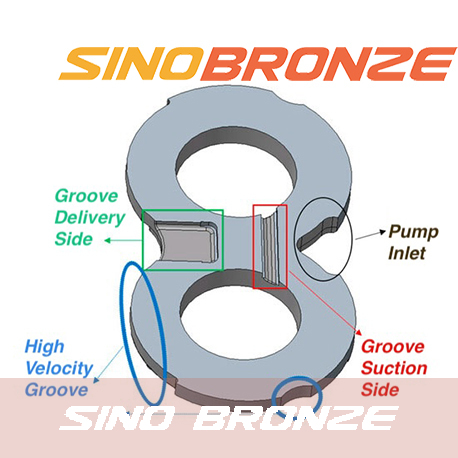

Function of SinoBronze ® Side Plates
In a hydraulic gear pump, SinoBronze side plates serve several crucial roles: 1. Efficiency: The main function of the side plate is to reduce friction in the gear pump, which helps maintain the pump’s operational efficiency. The plate’s bronze layer offers excellent anti-friction properties, ensuring that the gears in the pump can rotate smoothly and without unnecessary resistance. 2. Durability: The steel backing of the bimetal side plate provides strength and durability, allowing it to withstand the high pressures and forces commonly experienced in hydraulic systems. 3. Maintenance and lifespan: Thanks to their excellent wear resistance, bimetal side plates can extend the lifespan of hydraulic gear pumps. By reducing friction and wear, these plates help prevent premature wear and tear, reducing the need for frequent maintenance and replacement of parts.    In conclusion, bimetal thrust plates play a crucial role in the operation of hydraulic gear pumps. Their combination of strength, durability, and anti-friction properties make them an indispensable component, contributing to the overall efficiency and lifespan of the pump. It is essential to source these components from a reliable supplier to ensure the optimal performance of your hydraulic gear pump.

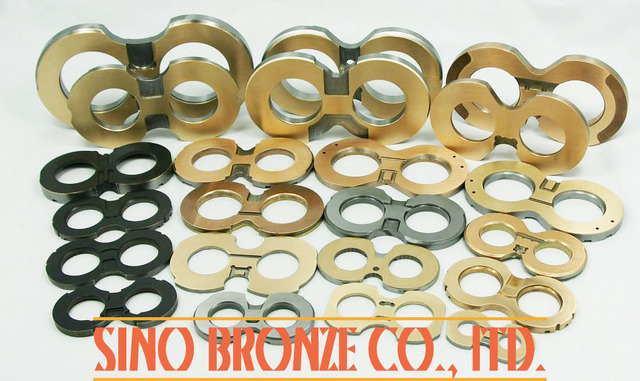

Catalogue of SinoBronze ® Side Plates
* Most of SinoBronze made side plates are customied by end user's drawings or samples. Please contact us by email sales@sinobronze.com for more details and solutions we are providing to worldwide end users according to differnt gear pump applications.        * Most of SinoBronze made side plates are customied by end user's drawings or samples. Please contact us by email sales@sinobronze.com for more details and solutions we are providing to worldwide end users according to differnt gear pump applications.

Gear Pump Thrust Plate is a precision-engineered design that supports the gears, resisting axial loads for efficient gear pump operation. The Gear Pump Thrust Plate operates by providing stability and support to the rotating gears within the gear pump. It functions by providing necessary support to the gears, effectively resisting axial loads during the pump's operation. It maintains reliable and efficient pumping performance, and enhances the longevity and dependability of gear pumps, making it an integral component in their working mechanism. Attributes:
• Ensuring proper fit and alignment within the gear pump.
• Reducing wear, contributing to extended gear pump lifespan.
• Designed to withstand stress and ensure consistent performance.
Applications: The Gear Pump Thrust Plate is designed to withstand axial loads, providing stability and support to the rotating gears. Engineered for durability, this plate ensures smooth and efficient operation of the gear pump, contributing to reliable fluid transfer.

Gear Pump Wear Plate is a component within a gear pump system designed to minimize wear between moving parts and maintain fluid transfer efficiency. The Gear Pump Wear Plate minimizes friction and wear between the gears and the pump housing, ensuring smooth operation and longevity of the pump system. It provides a protective surface that reduces the impact of friction and abrasion, maintaining the integrity of the gear. Attributes:
• Hardened and wear-resistant design.
• Resistance to degradation from fluid contact and operational stresses.
• Designed to optimize fluid transfer efficiency and pump longevity.
Applications: The Gear Pump Wear Plate is used as a wear-resistant surface against which the pump's gears make contact during operation.
