SB-DX plate & SB-DX strip, bronze and POM lined, marginally lubricated, size on request
SB-DX
Specifications

SB-DX strips
SB-
DX plates

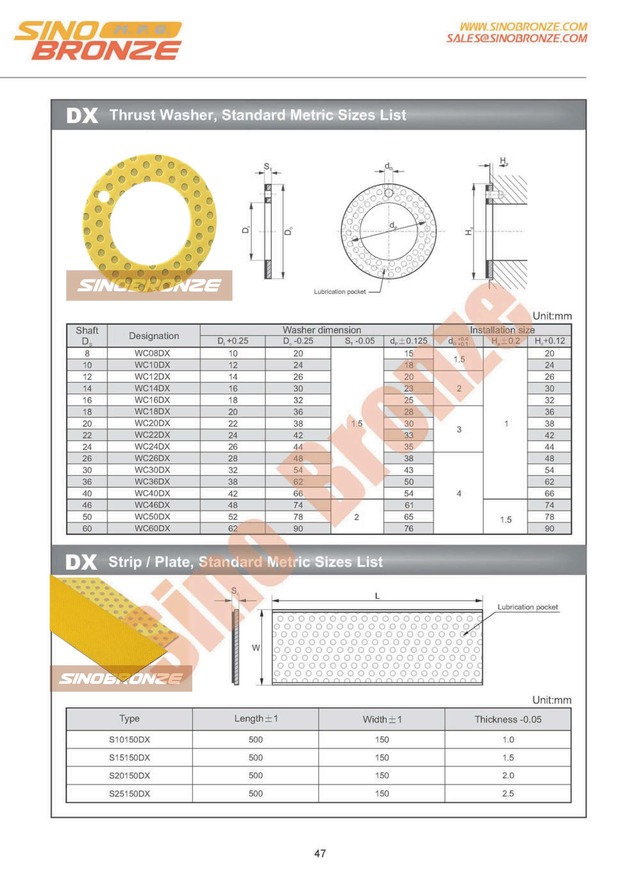

Metric Sizes



  SB-DX plate & SB-DX strip, bronze and POM lined, marginally lubricated, size on request

Sintered POM and Bronze Powder  on Steel Backing
POM + SIntered Bronze Powder + Steel Backing + Copper / Ting-plating

Features
Sinobronze SB-DX bearings are suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.


Structures

1. POM with MoS2 thickness 0.30~0.50 mm, it provides high wear resistance and low friction even with only minute volume of lubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the resin mixture.
3. Low-carbon steel, provides exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.


Technical Data of SB-DX materials

Data Types

SB- DX

DX -SB1

DX -SB2 DX -SB3 SB- HIEX

With Lead
or Without Lead

No oil pockets
& Without Lead

Bronze Backing
& Without Lead
Blue Lining
& Without Lead
High Temperature
& Without Lead
Materiai Steel + Bronze + POM  (+Pb) + MSo2 Steel+ Bronze + POM + MSo2 Bronze + Bronze + POM + MSo2 Steel+ Bronze + POM + MSo2 Steel + Bronze + (PTFE+PEEK)
Typicai
application
It's used in many places of Vehicle/Automotive, Building equipment, Agricultural equipment,
Machine tooling building industry, forming machine tools, steel metallurgical machinery, mineral mountain machinery,
hydraulic industry and rolling steel industry, etc.
High temperature condition like high-pressure gear pump, water injection pump, hydraulic motor and spray painting food processing.
Max. Loading P Static load
N/mm²
250 250 250 250 250
Very low speed N/mm² 140 140 140 140 140
Dynamic load N/mm² 70 70 70 70 70
Max.Speed Vm/s Grease
Lubrication
2.5 2.5 2.5 2.5 2.5
Max.PV limit 3 3 3 3 3.6
Friction coef u 0.05~0.20 0.05~0.20 0.05~0.20 0.05~0.20 0.03~0.20
Mating Axis Hardness (HB) >270 >270 >270 >270 >270
Roughness (Ra) 0.4~1.25 0.4~1.25 0.4~1.25 0.4~1.25 0.4~1.25
Temperature Range ( ℃) -40~+120 -40~+120 -40~+120 -40~+120 -150~+250
Thermal conductivity (W/mk﹣¹) 50 50 65 50 50
Coefficient of linear expansion 11×10-6K 11×10-6K 11×10-6K 11×10-6K 11×10-6K
Outside Surface Plating copper/tin copper/tin No copper/tin copper/tin copper/tin
 * Initial pre-lubrication at assembly is strongly recommended.

Typical Applications

Recommended for applications involving intermittent operation or boundary lubrication...
Automotive: suspension joints, kingpin assemblies and stub axles of tucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fair leader rollers...
Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in multi-ram presses...
Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters... It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.


Other Standard SB-DX Shapes






DX bushing - metric & inch   DX thrust washer - metric & inch   Customized DX bearing shell

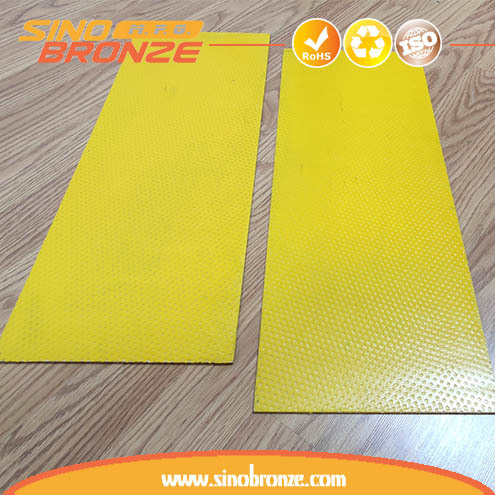

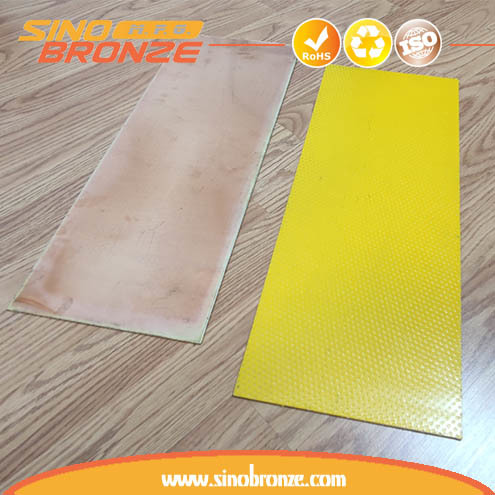

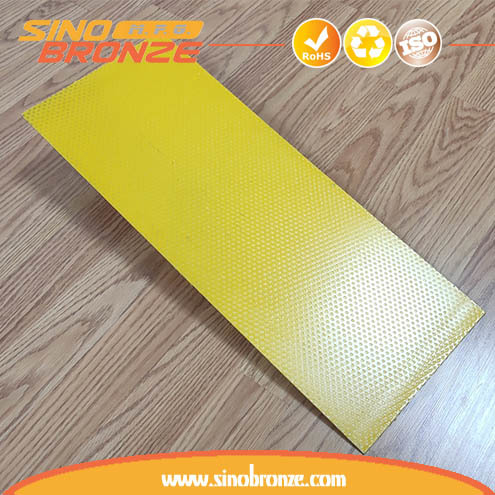

Gallery of DX plates & DX strips
DX plate / DX strip / POM coated slide plate /  POM lined slide plate
DX plate / DX strip / POM coated slide plate /  POM lined slide plate
DX plate / DX strip / POM coated slide plate /  POM lined slide plate
DX plate / DX strip / POM coated slide plate /  POM lined slide plate







MB0808DX MB0810DX MB0812DX MB1010DX MB1012DX MB1015DX MB1020DX MB1210DX MB1212DX MB1215DX MB1220DX MB1225DX MB1415DX MB1420DX MB1425DX MB1510DX MB1512DX MB1515DX MB1525DX MB1615DX MB1620DX MB1625DX MB1815DX MB1820DX MB1825DX MB2010DX MB2015DX MB2020DX MB2025DX MB2030DX MB2215DX MB2220DX MB2415DX MB2420DX MB2425DX MB2430DX MB2515DX MB2520DX MB2525DX MB2530DX MB2820DX MB2825DX MB2830DX MB3020DX MB3030DX MB3040DX MB3220DX MB3230DX MB3235DX MB3240DX MB3520DX MB3530DX MB3550DX MB3720DX MB4020DX MB4030DX MB4040DX MB4050DX MB4520DX MB4530DX MB4540DX MB4545DX MB4550DX MB5040DX MB5060DX MB5520DX MB5525DX MB5530DX MB5540DX MB5550DX MB5560DX MB6030DX MB6040DX MB6060DX MB6070DX MB6540DX MB6560DX MB6570DX MB7040DX MB7050DX MB7065DX MB7070DX MB7080DX MB7540DX MB7560DX MB7580DX MB8040DX MB8060DX MB8080DX MB80100DX MB8530DX MB8540DX MB8560DX MB8580DX MB85100DX MB9040DX MB9060DX MB9090DX MB90100DX MB9560DX MB95100DX MB10050DX MB10060DX MB10080DX MB10095DX MB100115DX

008DX006 008DX008 010DX010 010DX012 012DX012 012DX016 014DX012 014DX016 016DX012 016DX016 018DX012 018DX016 020DX012 020DX016 022DX016 022DX024 024DX016 024DX024 024DX032 026DX016 026DX024 026DX032 028DX016 028DX024 028DX032 030DX016 030DX024 030DX032 032DX024 040DX024 040DX032 040DX040 048DX024 048DX032 048DX040 048DX048
