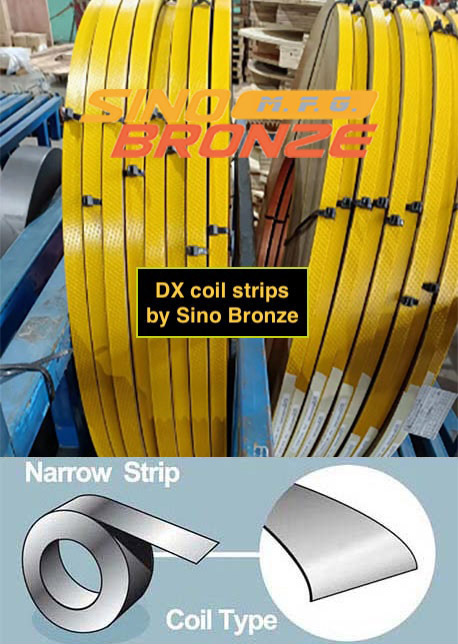

DX coil strips with Thickness 1.0/1.5/2.0/2.5/3.0/3.5/4.0 MM, DIN1494 / ISO3547 standards
Sintered Layers
Sintered POM and Bronze Powder on Steel Backing
POM + SIntered Bronze Powder + Steel Backing + Copper / Ting-plating
Features
Sinobronze SB-DX bearings are suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.
Technical Data
Max load pressure: 70N/mm²
Friction Coef. μ: 0.05-025
Applicable temperature : -40℃-130℃
Max allowable PV value dry: 22N/mm²·m/s
Max sliding speed: 2.5m/s
|
|
|
|
|
 |
|
|

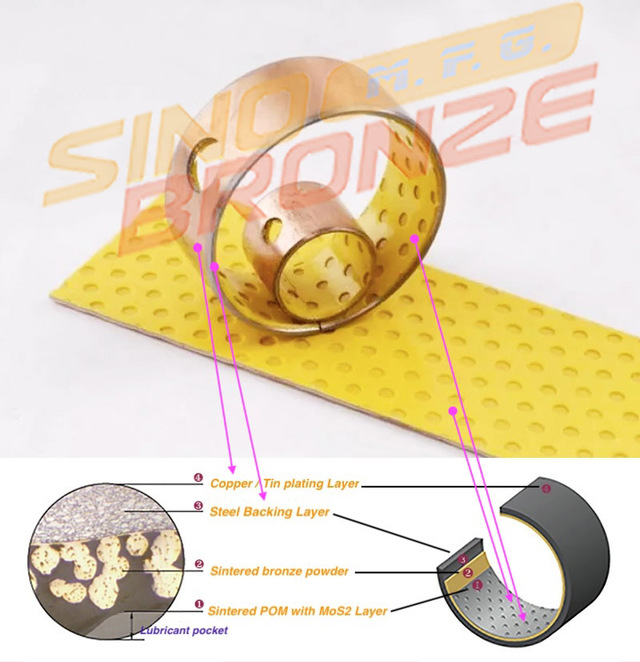

Structures
1. POM with MoS2 thickness 0.30~0.50 mm, it provides high wear resistance and low friction even with only minute volume of lubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the resin mixture.
3. Low-carbon steel, provides exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.
|
|
Typical Applications
This material meets the demanding criteria for long life and trouble-free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earthmovers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.

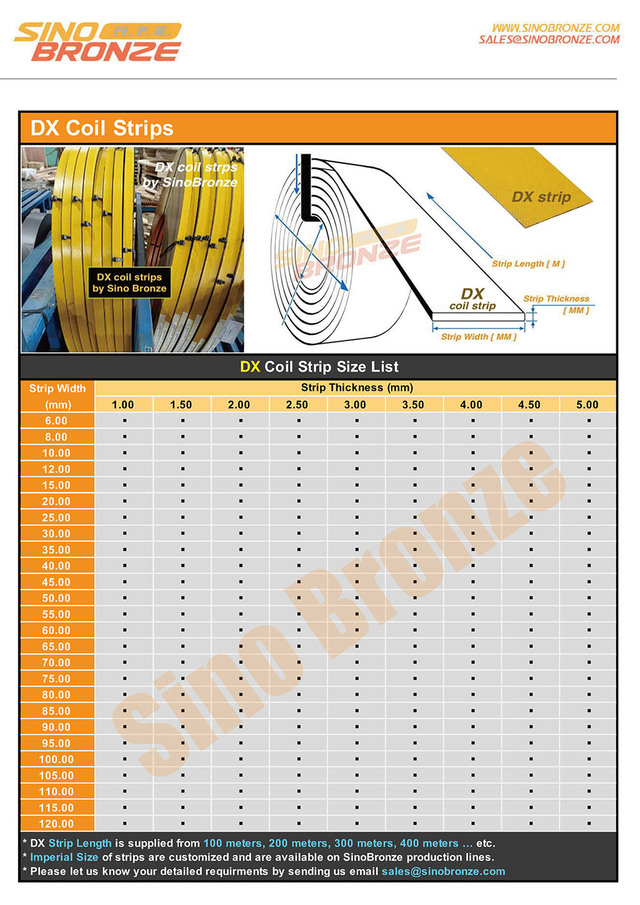

Coil Strip Sizes
Other Standard DX Shapes
|
