| • SINOBRONZE with Aluminum Bronze C95900 |
C95900 Aluminum bronze is good strength and corrosion resistance. It is for heavier loads under abrasive conditions where impact is not present. Utilized in the tool and die and roll forming industries. C95900 is a very popular aluminum bronze alloy.
Sinobronze uses C95900 aluminum bronze to produce gears, worm drives, valve guides and seats, Die Rings, Forming Rolls, Inserts, Wiping Blocks, Cam Followeres, Pilot Bushings, Dies, Drill Jig Bushings.
|
| • Chemical Composition of Aluminum Bronze C95900 |
| Cu% |
Fe% |
Ni% (1) |
Al% |
Mn% |
| Rem. |
3.00-5 |
0.5 |
12.00-13.5 |
1.5 |
|
| • Mechanical Properties Aluminum Bronze C95900 |
|
Tensile Strength
(min)
|
Yield Strength
(at .5% extention under load min)
|
Elongation
(in 2in. or 50mm min, %)
|
Brinell Hardness
(min)
|
Remarks
|
|
Ksi
|
MPa
|
Ksi
|
MPa
|
-
|
-
|
-
|
|
85
|
515
|
35
|
345
|
1
|
241
|
-
|
|
| • Typical Applications of Aluminum Bronze C95900 |
| |
|
|
|
|
|
|
| • Gears |
|
• Worm drives |
|
• Valve guides & seats |
|
• Die rings |
| • Forming rolls |
|
• Inserts |
|
• Wiping Blocks |
|
• Cam followeres |
| • Pilot Bushings |
|
• Dies |
|
• Drill Jig Bushings |
|
|
|
|
 |
|
 |
|
|
|
|

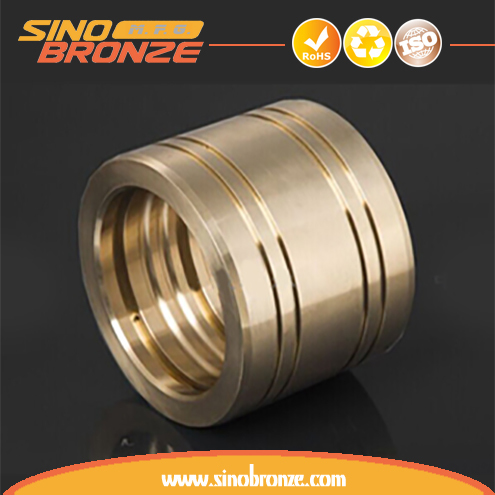

C95900
Bronze Bearing |
|
C95900
Bronze Bushing |
|
C95900
Bronze Bushing |
|
C95900
Aluminum Bronze Bushing |
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
