| • SINOBRONZE with C95500/C95520 Nickel Aluminum Bronze |
| |
|
C95500/C95520 (CuAl10Ni5Fe4) nickel aluminum bronze is the most common cast nickel aluminum bronze, which is also used in many heavy duty, high load and high wear applications. Good tensile strength, ductility, weldability and resistance to fatigue.
Sinobronze uses C95500 /95520 nickel aluminum bronze to produce aircraft components, bearings, bushings, gears, glands, glass molds, handgun recoil mechanisms, hot mill guides, landing gear parts, machine parts, pickling equipment, piston guides, pump fluid ends, sewage treatment applications, valve bodies, valve components, valve guides, valve seats, wear plates, welding jaws, worms, worms wheels
|
| • Chemical Composition Nickel Aluminum Bronze C95500/C95520 |
|
Cu
|
Sn
|
Pb
|
Zn
|
Fe
|
Ni
|
Al
|
Mn
|
|
78.00 min
|
N/A
|
N/A
|
N/A
|
3.00-5.00
|
3.00-5.50
|
10.00-11.50
|
3.5
|
|
| • Mechanical Properties Nickel Aluminum Bronze C95500/C95520 |
|
Tensile Strength (min)
|
Yield Strength
(at .5% extention under load min)
|
Elongation
(in 2in. or 50mm min, %)
|
Brinell Hardness (min)
|
Remarks
|
|
Ksi
|
MPa
|
Ksi
|
MPa
|
|
|
|
|
95
|
655
|
42
|
290
|
10
|
150
|
|
|
| • Typical Applications Nickel Aluminum Bronze C95500/C95520 |
| |
|
|
|
|
|
|
| • Bushings |
|
• Bearings |
|
• Gears |
|
• Mill Guides |
| • Gear parts |
|
• Piston guides |
|
• Valve bodies |
|
• Valve guides |
| • Valve seats |
|
• Wear plates |
|
• Worms |
|
• Worms wheels |
|
|
 |
|
 |
|
 |
|
|

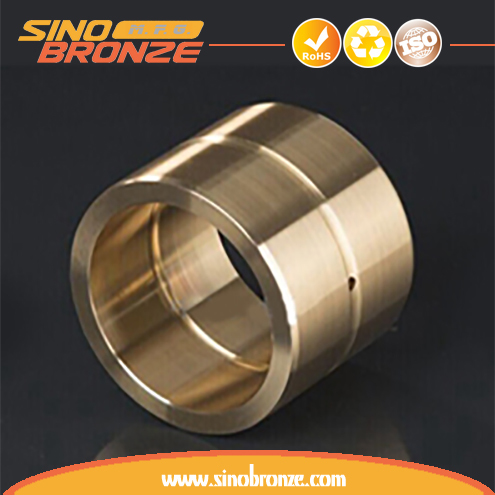

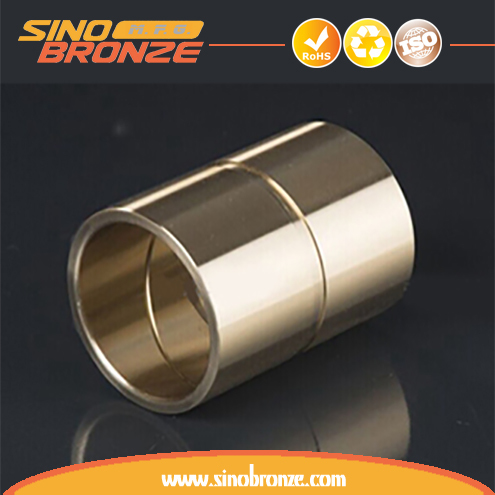

C95500
Bronze Bearing |
|
C95520
Bronze Bushing |
|
CuAl10Ni5Fe4
Bronze Bushing |
|
ASM B505 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
SAE9D
Bronze Bearing |
|
CC333G
Bronze Bushing |
|
CuAl10Fe5Ni5
Bronze Bearing |
|
CuAl11Ni
Bronze Bushing |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
2.0981
Bronze Bearing |
|
CAC703
Bronze Bushing |
|
UNI5275
Bronze Bearing |
|
|
|
|
